Add DB KPI

Created by Lakshmi Vasanth, Modified on Mon, 4 Mar, 2024 at 5:50 AM by Lakshmi Vasanth

You can add a database's required key performance indicators.

1. Navigate to Settings > Configurations > DB KPI.

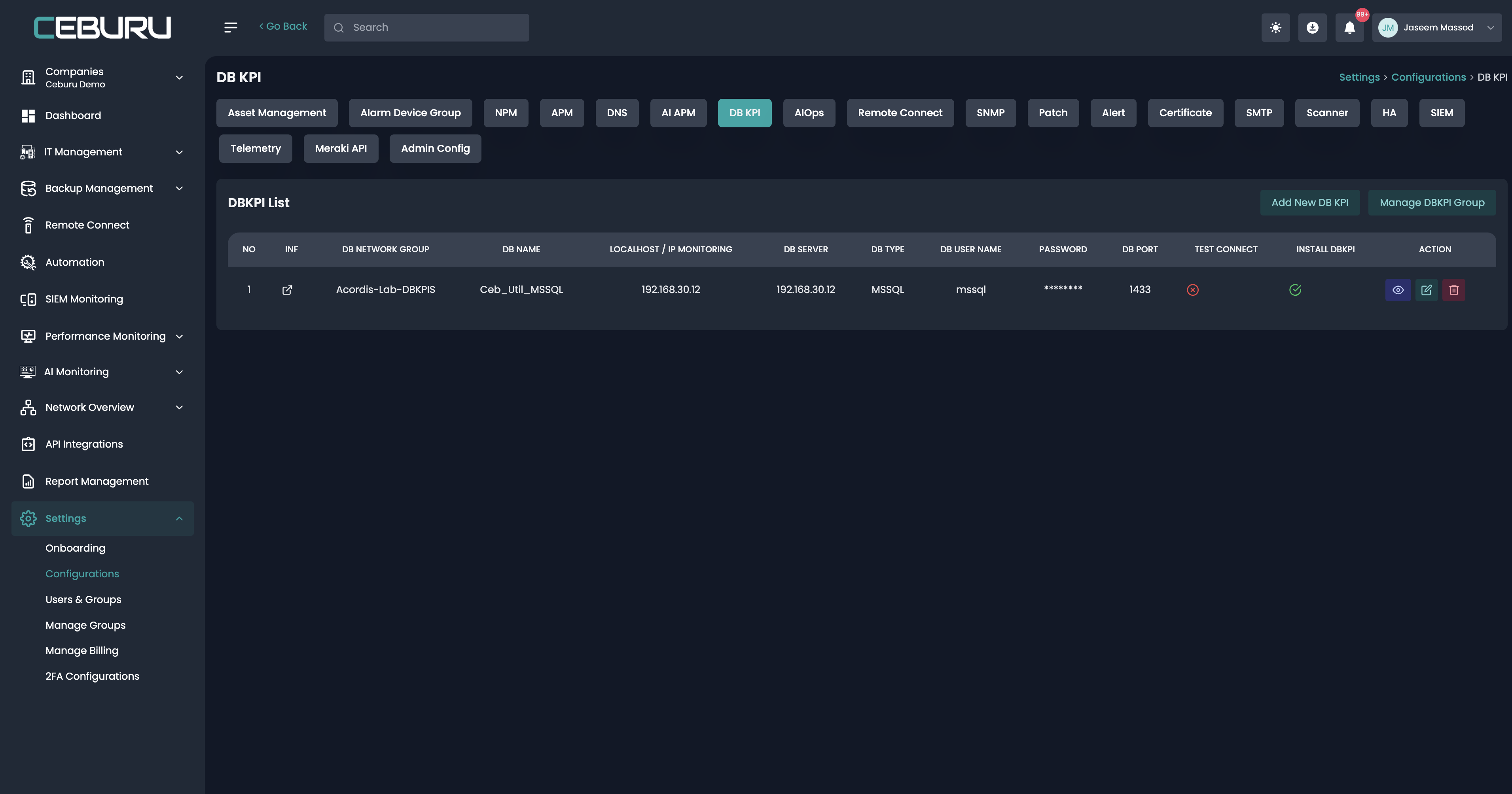

The DB KPI page is displayed.

2. Click Add New DB KPI.

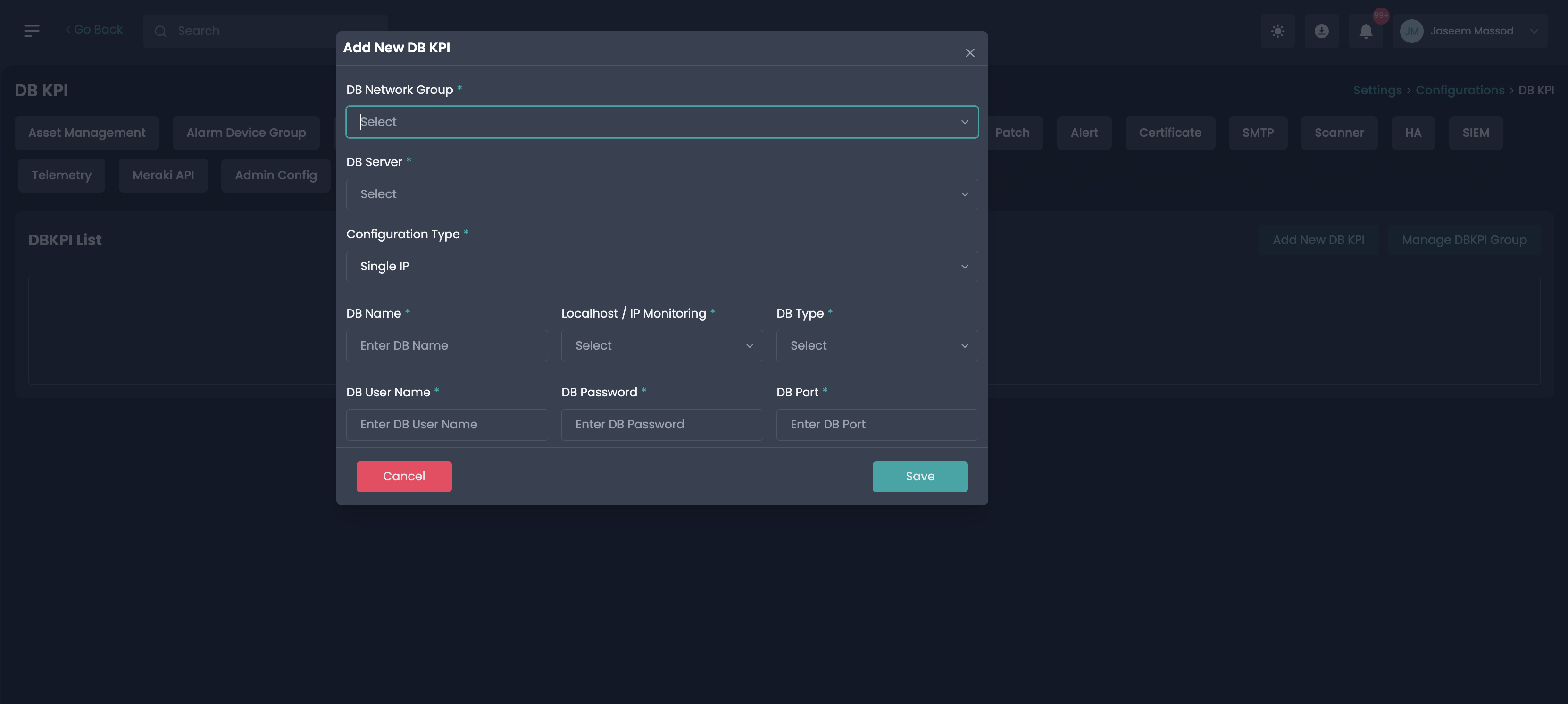

The Add New DB KPI dialog is displayed.

Note: All fields with an asterisk (*) are mandatory.

3. Enter/ select the required values in the respective fields. Refer to the following table for fields and their descriptions.

Field	Description
DB Network Group	Name of the database network group
DB Server	Name of the database server
Configuration Type	classification of database based on the type of configuration
DB Name	Name of the database
Local Host/ IP Monitoring	Local host machine IP for monitoring.
DB Type	Type of database associated
DB User Name	Unique username to access the database
DB Password	Password associated with the username
DB Port	Designated port of the database

4. Click Save.

The success notification is displayed.
